Passenger Assist Strap Buyer Checklist: What to Confirm Before You Order

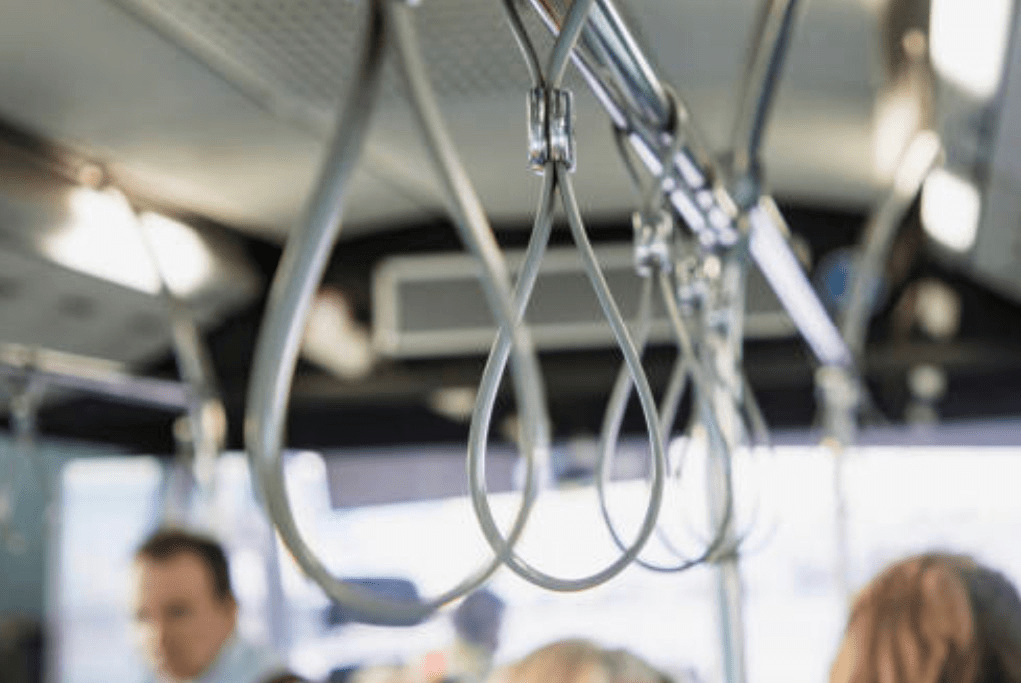

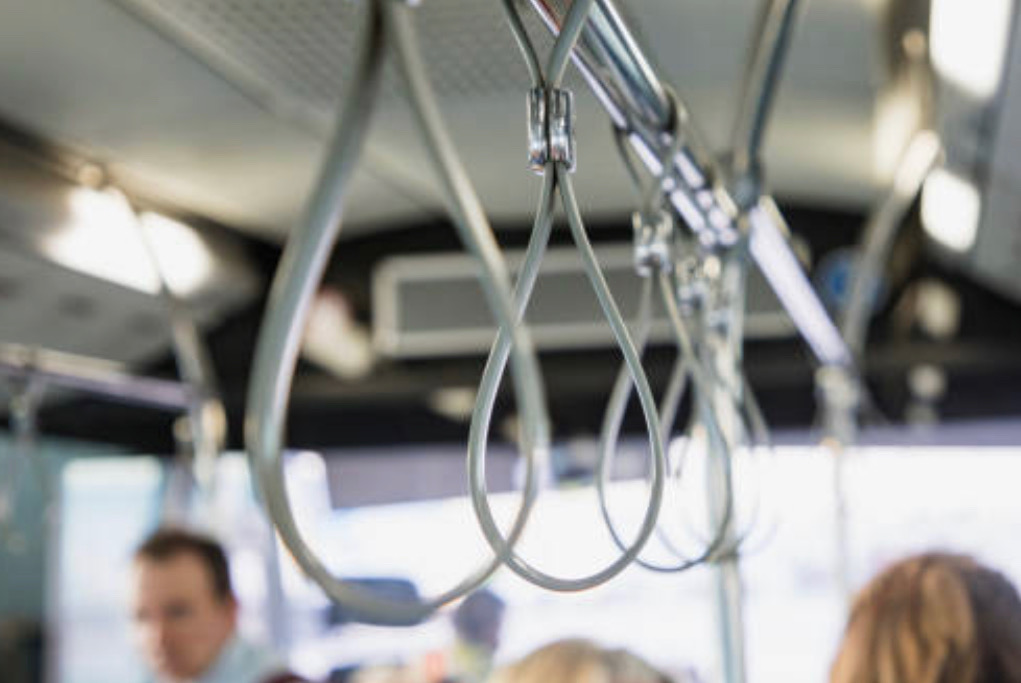

Passenger assist straps look like a simple purchase until you start specing one out. Fire performance, stanchion fit, strap count, mounting style, even color, all factor into whether the grab strap you order actually works for your fleet. Here is a checklist to work through before you place that order.

1. Fire Resistant Standards: Docket 90 or FMVSS 302?

These are not interchangeable and not optional extras. FMVSS 302 covers flammability, meaning how a material burns and whether it self extinguishes. Docket 90 covers smoke density and toxicity, verified through ASTM E-162, ASTM E-662, and Bombardier SMP 800-C testing. Rail and heavy transit programs typically require Docket 90 compliance in addition to FMVSS 302 for fire resistant passenger assist straps. Confirm which one, or both, your authority mandates before you even look at webbing options.

2. Stanchion Dimension

The clamp has to match the rail it mounts to. The common stanchion diameter across transit fleets is 1.25 inches, but this is not universal. Measure before ordering, especially on mixed fleets or older vehicles that may run a different diameter than newer deliveries.

3. Straps Per Vehicle

Strap count depends on vehicle length, seating layout, and standing capacity. A high floor commuter bus with limited standees needs far fewer straps than an articulated urban bus built for heavy standing loads. Walk the vehicle, or review the floor plan, and count actual reach points rather than guessing from a similar model.

4. Strap Type and Passenger Volume

High volume routes with constant standing loads need a grab strap built for repeated hard use, both in webbing durability and clamp strength. Lower volume routes or paratransit vehicles can often use a lighter duty configuration. Matching strap type to actual ridership avoids both overspending and premature wear.

5. Replacement Cycle

Straps wear out from hand contact, sun exposure, and cleaning chemicals well before most interior components. Set a replacement interval based on route intensity rather than waiting for visible failure. High use routes may need strap replacement well ahead of a general interior refresh.

6. Stationary or Sliding?

Some transit authorities want the strap fixed in place. Others want it to slide along the rail so riders can position it where they need it. This is a functional choice tied to rider flow and stop time, not just a preference. Consider how riders board, move, and exit on your specific routes.

7. Color and Length

Color can support branding or simply improve visibility against the interior palette. Length affects reach for standing riders of different heights and should be checked against actual stanchion height and floor clearance, not assumed from a standard spec sheet.

Quick Checklist

• Confirmed fire performance requirement: Docket 90, FMVSS 302, or both
• Measured stanchion diameter
• Counted required straps per vehicle based on layout and capacity
• Matched strap durability to ridership volume
• Set a replacement interval based on route intensity
• Decided stationary versus sliding mount
• Selected color and length for the vehicle and rider base

Talk It Through Before You Order

A lot of this comes down to details that vary fleet to fleet. If you want a second set of eyes on your passenger assist strap spec before you commit to an order, call or email RDM. We will walk through your requirements and help you land on the right configuration the first time.
